E6760（显示芯片216-0810025 216-0810112 216-0810119）与前代产品一样采用了直接将显存封装在GPU基板上的设计，可以有效降低体积。性能方面E6760采用了最新的Turks核心，拥有480个SP，24个纹理单元，8个光栅单元，自带128bit GDDR5 1GB显存，核心显存频率分别为600/3200MHz，而在这种频率之下的功耗仅为35W。
该产品拥有PCI-E以及MXM两种封装方式，与前代产品最大进步在于在可以直接输出5屏，无论是游戏机还是医疗等用途均十分方便。 这种产品应用在一体机以及HTPC上是十分的方便.
集成显示芯片E6760还有望与即将到来的LIano APU进行并行工作，不过它并不一定针对消费类电子产品，它通过各种不同平台嵌入，可能在医疗成像、赌场游戏，VxWroks虚拟仿真等其它军工商显行业成为首选。
OPN: 100-CG2266 100-K00198 EM93F
|
Features & Benefits
- GPU and memory in one MCM BGA package
- Desktop level graphics, multimedia and compute capabilities
- 480 shader processors
- 128-bit memory interface with 1 GB GDDR5
- Microsoft® DirectX® 11 support
- Third generation unified video decoder
- Support for H.264, VC-1, MPEG-2/4 decode
- Dual HD decode, Blu-ray & stereo 3D
- Up to 6 displays with AMD Eyefinity1 technology
- AMD Accelerated Parallel Processing (APP)2 technology for supercomputing capabilities
- 5 year supply with dedicated support3
|
|
AMD Radeon™ E6760 MXM Module Overview |
|
Mobile PCI Express™ MXM Graphic Module |
Version 3.0, Type A |
|
Module dimensions
L x W x H (mm, nominal) |
No thermal solution
70 x 82 x 7 mm |
Fansink
97 x 82 x 22 mm |
Heatpipe
95 x 82 x 40 mm |
|
Thermal Design Power7 (TDP) |
41W |
|
E6760 Graphics Processing Unit GPU：100-CG2266 |
|
Process Technology |
40 nm |
|
Graphics Engine / Memory Clock |
600 MHz Engine/800 MHz Memory |
|
Memory |
128-bit, 1 GB GDDR5, 51.2 GB/s |
|
Host Interface |
PCI Express® Version 2.1 (x1, x2, x4, x8, x16) |
|
Graphics |
480 shaders
3DMark™ VantageP score of P5870
DirectX® 11, Shader Model 5.0, OpenGL 4.1 |
|
Video |
3rd Generation Video Decoder
H.264, VC-1, MPEG-2, MPEG-4 part 2 decode
Blu-ray 3D & stereo 3D graphics with AMD HD3D technology |
|
Compute |
576 GFLOPs/s single precision floating point (peak)
AMD APP technology, OpenCLTM 1.1, DirectCompute 11 |
|
Display |
Up to 6 displays with AMD Eyefinity multi-display technology (default = 3 displays)4 |
|
Audio |
Integrated HD audio controller (Azalia) & Codec |
|
Display Interfaces8 (max resolution) |
|
Analog VGA |
1x Triple 10-bit RGB DAC, 400 MHz, (2048 x 1536) |
|
Single / Dual-Link DVI Resolution (w HDCP) |
2x single-link DVI, (1600 x 1200) / 1x dual-link DVI, (2560 x 1600), 162 MPixels/s per link |
|
DisplayPort |
2x DisplayPort 1.1a (2560 x 1600), 4x DisplayPort 1.2, (3840 x 2400) |
|
Single / Dual-Link LVDS |
1x single-link, (1280 x 1024) / 1x dual-link, (2048x1536) |
|
HDMI™ |
1x HDMI™ 1.4a, (1920 x 1080p), 148.5 MHz pixel clock |
|
Multi-Display Configurations4,8 |
|
Default (3 displays) |
Up to 2 display outputs from dual-link DVI-D, single-link DVI-I and HDMI™ 1.4a + 1x DisplayPort 1.2a |
|
Up to six displays |
Up to 2 display outputs from VGA, single / dual-link DVI, single / dual-link LVDS, HDMI™ 1.4a and up to 6 display outputs from DisplayPort 1.1a / 1.2 |
|
Software Support |
|
Windows® XP / XP Embedded9 |
yes |
|
Windows® Vista / Windows® 7 |
yes |
|
Linux® (x86) |
yes |
1. System configuration: 1280x1024, E6760: 600e/800m, 1 GB GDDR5, AMD: AMD Athlon™ II X4 620
@ 2.6GHz, MSI Gigabyte GA-MA770T-UD3P, Corsair XMS3 4GB (2x2GB) 1333MHz 9-9-9-24
(TW3X4G1333C9A G), Windows® 7 64-bit Ultimate
2. AMD APP technology is a set of technologies designed to improve video quality and enhance
application performance. Full enablement of some features requires support for OpenCL™ or
DirectCompute (including AMD’s Universal Video Decoder (UVD)). Not all products have all features
and full enablement of some capabilities and may require complementary products.
3. OpenCL certification expected.
4. AMD Eyefinity™ technology can support multiple displays limited by display output clock
dependencies. Two internal PLLs + an integrated DisplayPort reference clock can support (1) two
legacy display outputs + four DisplayPort outputs, (2) one lega cy display output + five DisplayPort
outputs or (3) six DisplayPort outputs. Legacy display = VGA, DVI, HDMI™ or LVDS. Microsoft®
Windows® 7, Windows Vista®, or Linux® is required in order to support more than 2 displays. SLS
(“Single Large Surface”) functionality requires an identical display resolution on all configured
displays.
5. AMD HD3D is a technology designed to enable stereoscopic 3D support in games, movies and/or
photos. Additional hardware (e.g., 3D-enabled panels, 3D-enabled glasses/emitter, Blu-ray 3D
drive) and/or software (e.g., Blu-ray 3D discs, 3D middleware, games) are required for the
enablement of stereoscopic 3D.
6. Part availability is planned for 5 years from date of announcement and subject to change without
notice.
7. TDP estimate based on 3DMark™03 and not complete at time of publication.
8. Not all display interfaces available at same time. MXM 3.0 connector pinout may limit some display
interface combinations. Maximum resolution dependent on link bit-rate and available memory
bandwidth. AMD Embedded Catalyst™ Software driver version 8.81 or higher required to support
AMD Eyefinity multi-display technology. AMD Eyefinity multi-display technology has certain
restrictions on supported display interfaces.
9. Some features not supported (e.g., AMD Eyefinity, DirectX® 11, etc.)
Contact your local AMD distributor for ordering information.
OPN: 100-K100159 E6760 1 GB RoHS AES MXM 3.0 Type A
OPN: 100-K100156 E6760 1 GB RoHS AES MXM 3.0 Type A w Fan
OPN: 100-K100157 E6760 1 GB RoHS AES MXM 3.0 Type A w Heatpipe
|

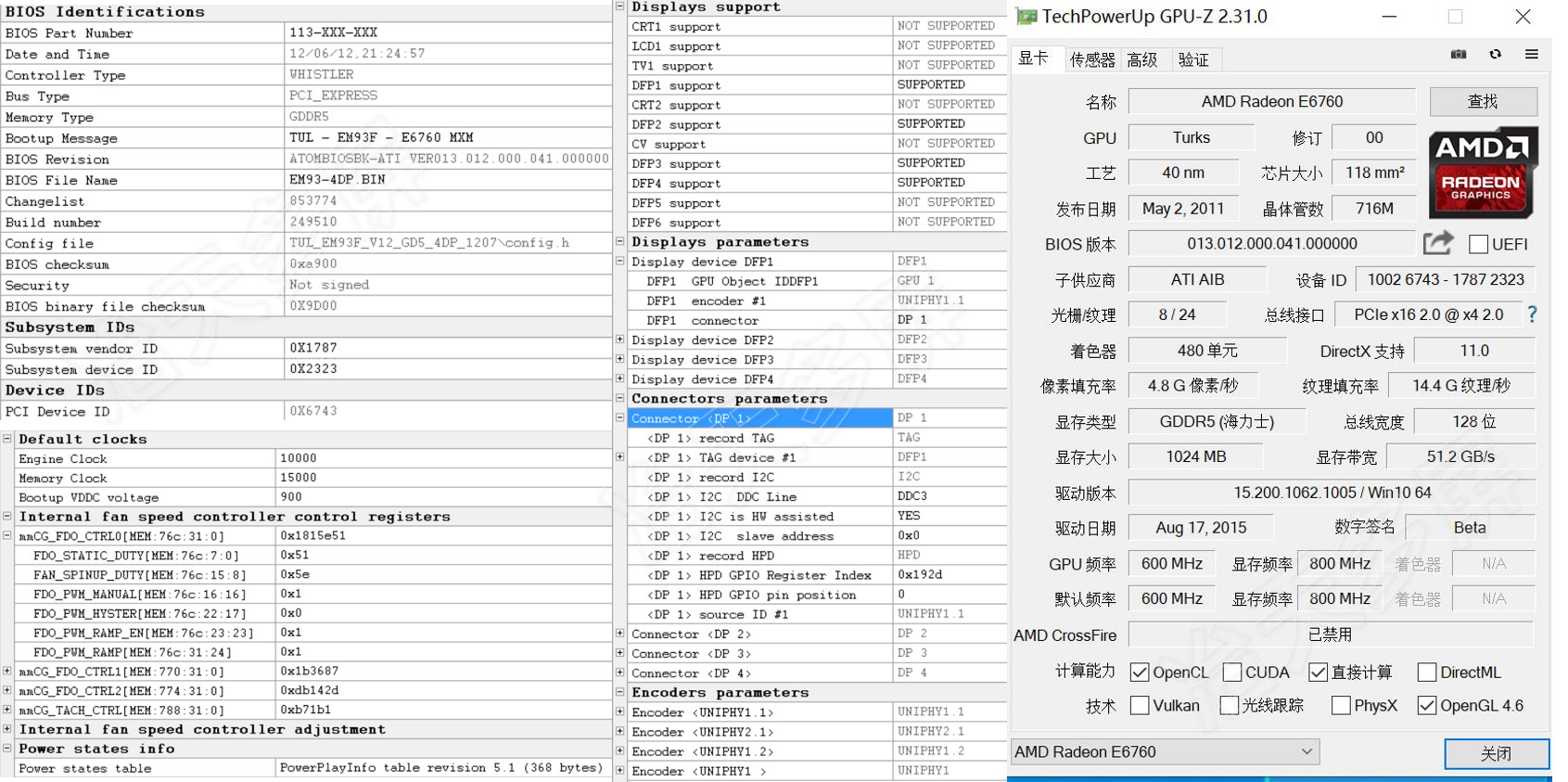

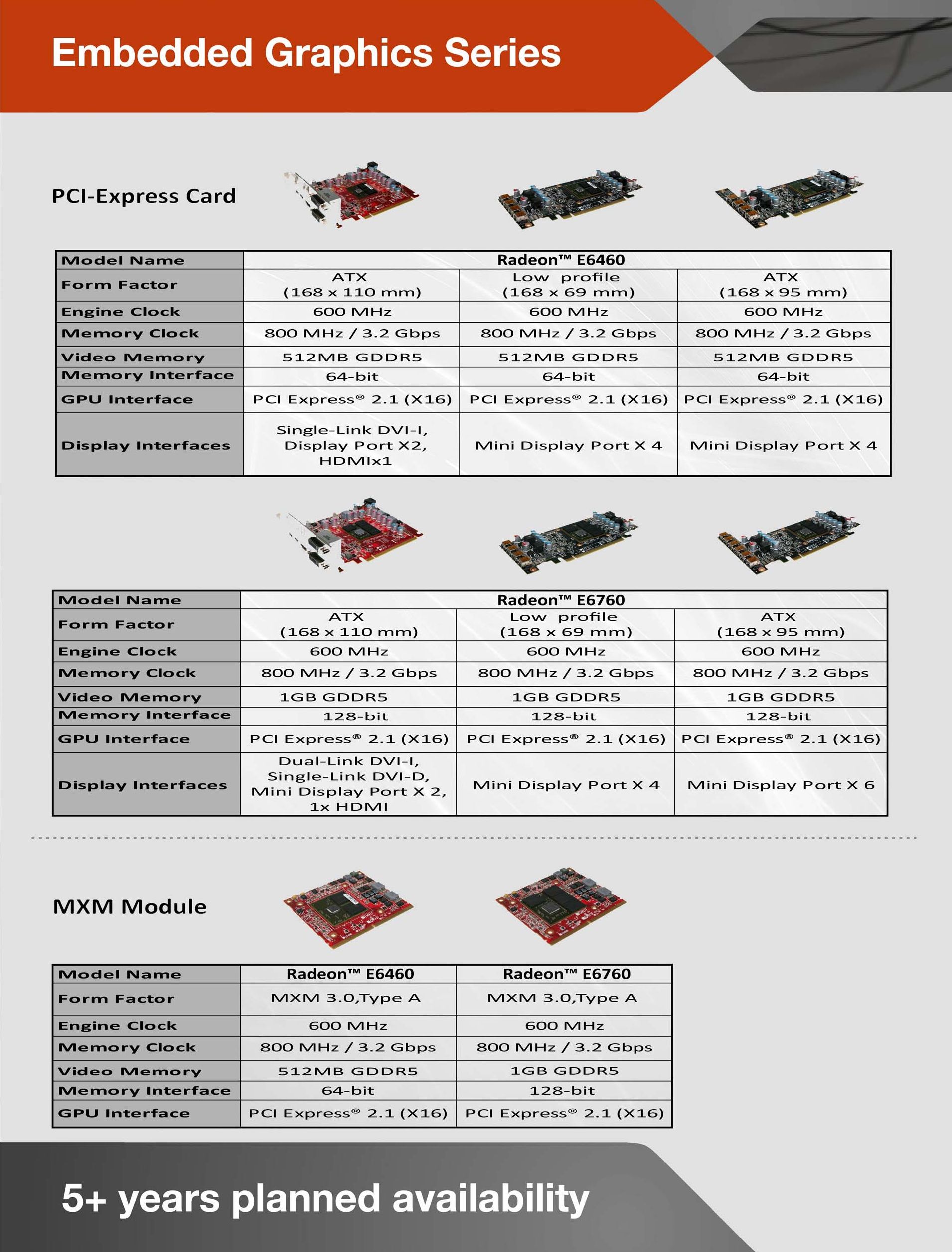

MXM Module |
(AMD Radeon™ E6460) |
(AMD Radeon™ E6760) |
|
Module Number |
EM91F |
EM93F |
|
Graphics Processing Unit |
GPU：100-CG2261 |
GPU：100-CG2266 |
|
Process Technology |
40 nm |
40 nm |
|
Graphics Engine Operating Frequency (max) |
600 MHz |
600 MHz |
|
MXM type |
MXM 3.0,Type A |
MXM 3.0, Type A |
|
CPU Interface |
PCI Express® 2.1 (X16) |
PCI Express® 2.1 (X16) |
|
Shader Processing Units |
2 SIMD engines x 80 processing elements = 160 shaders |
6 SIMD engines x 80 processing elements = 480 shaders |
|
Floating Point Performance (single precision, peak) |
192 GFLOPs |
576 GFLOPs |
|
DirectX® capability |
DirectX® 11 |
DirectX® 11 |
|
Shader Model |
Shader Model 5.0 |
Shader Model 5.0 |
|
OpenGL |
OpenGL 4.1 |
OpenGL 4.1 |
|
OpenCL™ compliant |
AMD APP8, OpenCLTM 1.19, DirectCompute 11 |
AMD APP8, OpenCLTM 1.19, DirectCompute 11 |
|
Unified Video Decoder (UVD) |
UVD3 for H.264, VC-1, MPEG-2, MPEG-4 part 2 decode |
UVD3 for H.264, VC-1, MPEG-2, MPEG-4 part 2 decode |
|
Memory |
|
|
|
Operating Frequency (max) |
800 MHz / 3.2 Gbps |
800 MHz / 3.2 Gbps |
|
Configuration, type |
64-bit wide, 512 MB, GDDR5, 25.6 GB/s |
128-bit wide, 1 GB, GDDR5, 51.2 GB/s |
AMD原厂官方介绍链接：http://www.amd.com/us/products/embedded/graphics-processors/Pages/radeon-e6760-discrete-gpu.aspx
http://www.amd.com/cn/Documents/E6760-MXM-Product-Brief.pdf
http://www.amd.com/cn/Documents/E6760-PCI-Product-Brief.pdf
|
OPN |
MODEL |
OUTPUT |
COOLING |
|
100-CG2266 |
AMD Embedded Radeon™ E6760 MCM Module |
6 x DisplayPort / HDMI® / DVI |
N/A |
|
100-K00159 |
AMD Embedded Radeon™ E6760 MXM Type A Module |
5 x DisplayPort / HDMI / DVI |
N/A |
|
100-K00156 |
AMD Embedded Radeon™ E6760 MXM Type A Module |
DVI-I + DVI-D + HDMI |
Fansink |
|
100-K00157 |
AMD Embedded Radeon™ E6760 MXM Type A Module |
DVI-I + DVI-D + HDMI |
Heatsink |
|
100-K00172 |
AMD Embedded Radeon™ E6760 MXM Type A Module |
DVI-I + DVI-D + HDMI |
N/A |
|
100-K00170 |
AMD Embedded Radeon™ E6760 MXM Type A Module |
6 x DisplayPort / HDMI / DVI |
Fansink |
|
100-K00171 |
AMD Embedded Radeon™ E6760 MXM Type A Module |
6 x DisplayPort / HDMI / DVI |
Heatsink |
|
100-438019 |
AMD Embedded Radeon™ E6760 PCIe Board |
2 x DVI and 1x mini DisplayPort |
Fansink |
|
100-438042 |
AMD Embedded Radeon™ E6760 PCIe Board |
2 x DVI and 1x mini DisplayPort |
Heatsink |
|
100-438060 |
AMD Embedded Radeon™ E6760 PCIe Board |
6 x mini DisplayPort |
Fansink |
|
100-438061 |
AMD Embedded Radeon™ E6760 PCIe Board |
6 x mini DisplayPort |
Heatsink |
|
100-438037 |
AMD Embedded Radeon™ E6760 PCIe Board |
6 x DisplayPort (with mDP to DP adapters) |
Low-Power Heatsink |
|
100-438059 |
AMD Embedded Radeon™ E6760 PCIe Board |
6 x DisplayPort |
Low-Power Heatsink |
|
100-438038 |
AMD Embedded Radeon™ E6760 PCIe Board |
6 x DisplayPort (with mDP to DP adapters) |
Fansink |
|
100-438039 |
AMD Embedded Radeon™ E6760 PCIe Board |
6 x DisplayPort (with mDP to DP adapters) |
Heatsink |
|
100-438020 |
AMD Embedded Radeon™ E6760 PCIe Board |
6 x DVI (with mDP to DVI adapters) |
Fansink |
|
100-438023 |
AMD Embedded Radeon™ E6760 PCIe Board |
6 x DVI (with mDP to DVI adapters) |
Heatsink |
|
100-438081 |
AMD Embedded Radeon™ E6760 PCIe Board |
4 x DisplayPort |
Fansink |
|
100-438084 |
AMD Embedded Radeon™ E6760 PCIe Board |
4 x DisplayPort |
Heatsink |
|
100-438104 |
AMD Embedded Radeon™ E6760 PCIe Board |
6 x DVI |
Heatsink |
|
100-438136 |
AMD Embedded Radeon™ E6760 PCIe Board |
6 x DVI |
Fansink |
|
100-CG2763 |
AMD Embedded Radeon™ E6465MCM Module |
4 x DisplayPort / HDMI / DVI |
N/A |
|
100-K00209 |
AMD Embedded Radeon™ E6465MXM Type A Module |
4 x DisplayPort / HDMI / DVI |
N/A |
|
100-K00210 |
AMD Embedded Radeon™ E6465MXM Type A Module |
4 x DisplayPort / HDMI / DVI |
Heatsink |
|
100-438182 |
AMD Embedded Radeon™ E6465PCIe Low Profile Board |
4 x mini DisplayPort |
Heatsink |
|
100-438181 |
AMD Embedded Radeon™ E6465PCIe Low Profile Board |
2 x DisplayPort |
Heatsink |
|
100-CG2261 |
AMD Embedded Radeon™ E6460 MCM Module |
4 x DisplayPort / HDMI / DVI |
N/A |
|
100-K00169 |
AMD Embedded Radeon™ E6460 MXM Type A Module |
DVI-I + DVI-D + HDMI |
N/A |
|
100-K00177 |
AMD Embedded Radeon™ E6460 MXM Type A Module |
DVI-I + DVI-D + HDMI |
Fansink |
|
100-K00168 |
AMD Embedded Radeon™ E6460 MXM Type A Module |
DVI-I + DVI-D + HDMI |
Heatsink |
|
100-K00174 |
AMD Embedded Radeon™ E6460 MXM Type A Module |
4 x DisplayPort / HDMI / DVI |
N/A |
|
100-K00178 |
AMD Embedded Radeon™ E6460 MXM Type A Module |
4 x DisplayPort / HDMI / DVI |
Fansink |
|
100-K00173 |
AMD Embedded Radeon™ E6460 MXM Type A Module |
4 x DisplayPort / HDMI / DVI |
Heatsink |
|
100-438047 |
AMD Embedded Radeon™ E6460 PCIe Board |
2 x DVI and 1x mini DisplayPort |
Heatsink |
|
100-438062 |
AMD Embedded Radeon™ E6460 PCIe Low Profile Board |
4 x mini DisplayPort |
Heatsink |
|
100-438048 |
AMD Embedded Radeon™ E6460 PCIe Low Profile Board |
4 x mini DisplayPort (with mDP to DP adapters) |
Heatsink |
|
100-438049 |
AMD Embedded Radeon™ E6460 PCIe Low Profile Board |
4 x DVI (with mDP to DVI adapters) |
Heatsink |
|
